HL-168B Seat type internal wire machine (double wire)

Hits：957 Adddate：2024-8-14

Features:
■ Electronic adjustment motor, speed can be flexibly mastered, stop pin position is controlled by computer
■ Lightweight rocker arm structure design, so that the operator is not easy to fatigue; Oil-immersed lubrication system, preserved under normal use never need to change horns.
■ The computer positioning motor can automatically locate and lift the foot, and the running speed can be adjusted according to the operator's needs. The maximum speed can reach 2000 RPM.

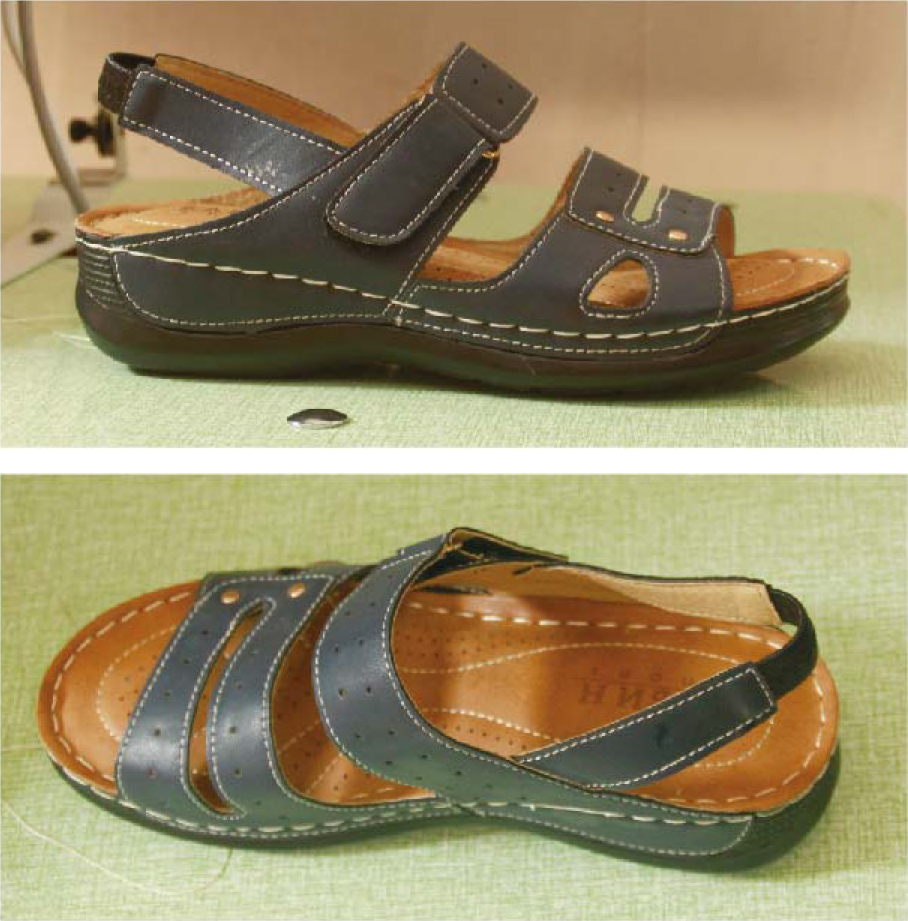

■ The special rocker arm tilt design is more suitable for the side stitching of slippers and the stitching of the top front of the shoe.

Technical parameter：
缝制速度（Stepless Speed）	无极调速
电动机（Motor）	750W/单相220V三相380V50-60HZ
线迹长度（Stitch length）	3-13mm
缝制厚度（Sewing thickness）	1.5-6mm
机针（Sewing needle）	Cp x 5
重量（Weight）	155kg
外型尺寸（Overall size）	120x56x145cm(LxWxH)
梭心直径/厚度（Diameter thickness）	26/11mm
